ROGER B70/2ML/BOX Control unit

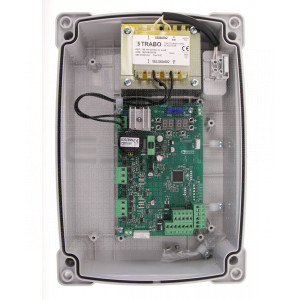

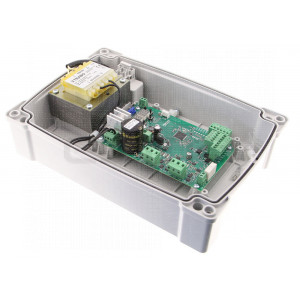

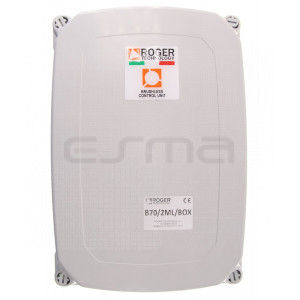

Roger B70/2ML/BOX Control Board – Advanced Garage Door Automation

The Roger B70/2ML/BOX control board is the ultimate solution for efficient and precise garage door automation. Designed to control two 24V Brushless motors, it ensures optimal performance and long-term reliability, even under heavy-duty usage.

Key Features:

• Compatibility: Supports two 24V Brushless motors, providing smooth and quiet operation.
• Durability: IP54-rated, offering dust and splash resistance.
• Max. Motor Power: 110W, ensuring strong and efficient movement.
• Courtesy Light Output: Up to 100W (230V AC) or 40W (24V AC/DC) for enhanced safety and visibility.
• Compact Size: 330 x 230 x 115 mm, making installation easy.

Technical Specifications:

• Power Supply: 230V AC - 50 Hz
• Operating Temperature: -10°C to +55°C
• Max. Number of Motors: 2 Brushless motors
• Max. Courtesy Light Power: 100W (230V AC) / 40W (24V AC/DC)
• Open Door Light Power: 3W (24V DC)
• Max. Accessory Output: 10W (24V DC)
• Max. Electric Lock Power: 15W (12V DC)
• Flashing Light Voltage: 24V DC
• Max. Flashing Light Power: 25W
• Battery Compatibility: Optional
• Weight (packaged): 4.5 kg

Compatible Motors:

The Roger B70/2ML/BOX is compatible with Roger Technology’s AYRON series 24V Brushless motors, including models R20/500 and R20/510.

Advantages:

✅ Heavy-duty use – designed for frequent operations.
✅ Easy installation – compact and well-organized connections allow for quick setup.
✅ Enhanced safety – supports additional safety devices like photocells and sensors.

Buy the Roger B70/2ML/BOX control board at the best price and take advantage of our exclusive offers!
